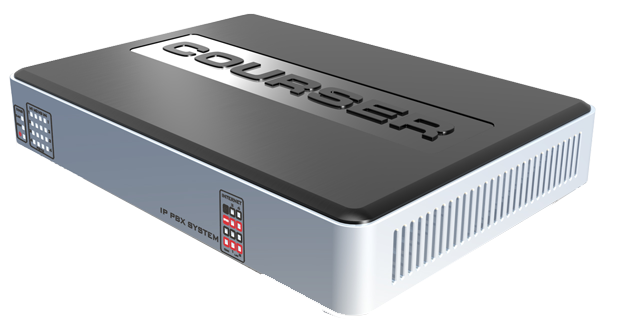

COURSER

Click in to view more details



Features

  All in One Design
        - H.323 v2 & SIP (RFC 3261) works simultaneously
        - SIP Proxy Server Build-in
        - Analog Telephone FXO / FXS Interface
        - Internet Router WAN / LAN
  Auto Attendant
        - 10 unique auto attendants
  Voicemail
        - 100 minutes of storage capacity
  Calling Feature
        - Call Transfer, Call Forward, Call Pickup, Call Park
        - DID
        - Configurable dialing plan
        - Caller ID
        - Dial by Number or Name
        - DND
        - Hunt groups
        - Speed dialing
        - Follow-me

Specification

  Phone Interface
        - 4 FXO (PSTN) & 4 FXS (Extension) *Standard Package
          (expandable to 4 FXO & 12 FXS)
        - Max 32 SIP extensions
        - Supports both Analog & SIP Extensions
  Audio

        - 8 channels DSP codecs
          Supporting G.711 a-Law & u-Law, G.723.1, and G.729a.
          Supporting Codec Translations
        - DTMF tone generation & detection
  Network Interface
        - One RJ-45 10/100 Base-T WAN ports
        - Four switched RJ-45 10/100 Base-T LAN ports
  Networking
        - WAN: DHCP client / Static / PPPoE IP Assignment
        - LAN: DHCP server with NAT Router Build-in
        - QoS supported
  Administration
        - Built-in web server for configuration
        - IVR commands setting by Extensions
        - Build-in Auto Provisioning Server
  Trunks
        - Supports PSTN Trunks
        - Support H323 GateKeeper upper registration
        - Support up to 8 SIP proxies upper registration
  Electrical Information
        - Power Supply: Output 12V DC/ Input 100-240 Volt AC Adapter
        - RoHS
        - FCC & CE compliant
