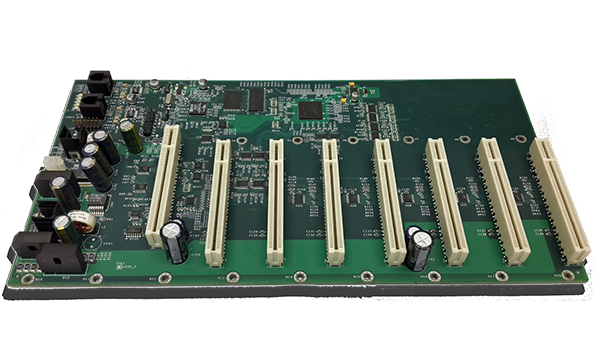

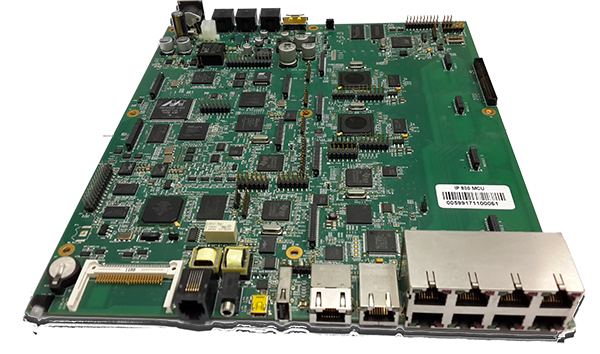

PCB Assembly Services

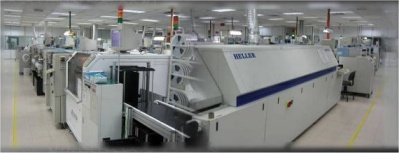

    Our assembly factory have 8 production lines, 4 SMT lines and 2 through hole assembly lines and more than 500 skilled workers well prepared in order to meet the various needs from any customers.

    We do offer fully ROHS compliant PCB assembly services for our customers. Our ROHS design conversion services span from BOM modifications to Board level design modifications as required by existing design specific parts.

Technical Capabilities

                   Supported Capabilities
Type of Assembly
  • THD (Thru-hole device) / Conventional
  •
  • SMT  & THD mixed
  •

  • SMT (Surface-mount technology)
  •

  • Double-sided SMT and/or THD assembly
  •

    Components
  • Fine pitch to 19 Mils
  •
  • Leadless chip carriers/ BGA, VFBGA,  FPGA & DFN
  •

  • Passives, smallest size 0402
  •

  • Connectors and terminals
  •

    Component Packaging
  • Cut tape
  •
  • Tube
  •

  • Reels
  •

  • Loose parts
  •

    Board Dimentions
  • Smallest size: 50mm x 50mm
  •
  • Largest Width: 730mm
  •

  • Largest Length: 440mm
  •

  • Thickness Range: 1 ~ 3.2mm
  •

    Board Thickness
  • FR1 / FR4
  •
  • Single Layer
  •

  • 2 ~ 12 Layers
  •

    Solder Type
  • Water soluble solder paste
  •
  • Manual soldering for sensitive parts.
  •

  • Lead-Free
  •


    Testing Procedures Include:
    1. Visual Inspection
    2. AOI(Automated Optical Inpector)
    3. ICT(in-circuit test)
    4. Functional test(test modules need to be supplied)
    5. Design for Manufacturability (DFM) feedback
