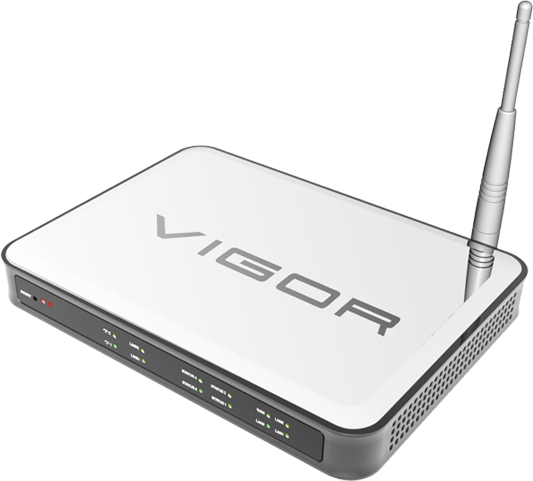

Vigor

Click in to view more details



Features

  All in One Design
        - SIP Proxy Server (RFC 3261)
        - Analog Telephone FXO / FXS Interface
        - Internet Router WAN / LAN
        - Wireless A.P.
  Auto Attendant
        - 10 unique auto attendants
  Voicemail
        - 100 minutes of storage capacity
  Calling Feature
        - Call Transfer, Call Forward, Call Pickup, Call Park
        - DID
        - Configurable dialing plan
        - Caller ID
        - Dial by Number or Name
        - DND
        - Hunt groups
        - Speed dialing
        - Follow-me

Specification

  Phone Interface
        - 2 FXO (PSTN) / 2 FXS (Extension)
        - 2 FXS (Extension)
        - Max 24 user extensions
        - Supports both Analog & SIP Extensions
  Audio

        - G.711 a-Law & u-Law, G.723.1, and G.729a
        - DTMF tone generation & detection
  Network Interface
        - One RJ-45 10/100 Base-T WAN ports
        - Three switched RJ-45 10/100 Base-T LAN ports
        - Wireless LAN 802.11 b/g
  Networking
        - WAN: DHCP client / Static / PPPoE IP Assignment
        - LAN: DHCP server with NAT Router Build-in
        - WMM & QoS supported
  Administration
        - Built-in web server for configuration
        - IVR commands setting by Extensions
        - Auto Provisioning
  VoIP Trunking
        - Supports PSTN Trunks
        - Support up to 8 SIP proxies upper registration
  Electrical Information
        - Power Supply: Output 12V DC/ Input 100-240 Volt AC Adapter
        - RoHS
        - FCC & CE compliant
